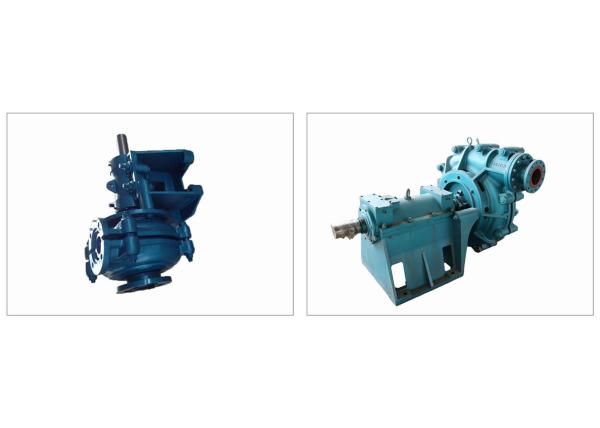

Iron Mining Gold Mining Anti-Abrasive Long Life High Chrome Iron Cast Mining Slurry Pump
Slurry pump description
Slurry pump are cantilever horizontal centrifugal slurry pump.They are widely used in industry of mining, electrical power, metallurgy, coal, environmental, etc for transportation of abrasive solid slurry.Mud pump, impurity pump, dredge pump and desilting pump are all belong to category of slurry pump.Material are vary from corrosion and abrasion degree, high chrome abrosion & corrosion resistance alloy Cr27MoNi, Cr30MoNi are optional.
Slurry pump specifications
| Type |
AM Slurry pump |
| Flow (m3/h) |
13-5000 |
| Head (m) |
5-68 |
| Power (kw) |
15-1200 |
| Eff. (%) |
20-85 |
| Pass Particle Size (mm) |
19-135 |
| Material |
High Cr Alloy, Rubber |
Parameters
Size range (outlet):----- 1'' to 18'' (25 mm to 450 mm)
Capacity:-------------- up to 22,000 gpm ( 5,000 m3/hr )
Head: -----------------up to 240 ft (73 m )
Pressure: --------------up to 300 psi (2,020 kPa)
Performance characteristics of slurry pump
- Replaceable wear-resistant metal lining, impeller, sheath, guard plate and over current parts.
- Long service life, reliable performance and easy operation.
- The shaft seals Type: Gland seal , Expeller Seal , mechanical Seal.
- Discharge branch can be positioned at intervals of 45 degrees.
Applications
This series is a single-stage, single-suction, cantilever horizontal centrifugal slurry pump. This series of pumps adopts the international advanced solid-liquid two-phase flow theory and is designed according to the principle of minimum loss. Using high-hard alloy cast iron, its material has high abrasion resistance, corrosion resistance, impact resistance, so as to increase its life. It can be widely used in mining, metallurgy, electric power, coal, chemical, building materials and other industries, and conveying solids The abrasive and corrosive slurry of the particles, the maximum weight concentration of the solid-liquid mixture: 45% mortar, 60% ore slurry.
